GPS Tracker Waterproof

Description

• GPS and Location Based Service

Location Based service also named A-GPS, when tracker in underground or tunnel ,can get location by ACPS.

• Real time tracking

Real time tracking it by cell phone and platform . Also can support get location every 5 seconds, and the GPS accuracy is 5m .

• Check the history of route

Can check and replay within one year history of route of device ,by web monitor center.

• Monitoring and communication

Can hear the voice around the tracker by cell phone

• SOS button

SOS button ,when user have emergency , press the SOS button ,the tracker will send “help me “ SMS to all authorized phone number and monitoring web platform .

• Mileage calculate

Check the mileage data by mobile and platform anytime and anywhere.

• Google map on mobile

Check the location with google map on mobile.

• Geofence and movement alert

Set up a geo-fence for the unit to restrict its movements within a district ,unit will send a message to the authorized numberwhen it breaches the district.

• Shake and overspeed alert

Set shake and overspeed alert,unit will send message when shaked and overspeed.

• Traffic model

When in traffic model the device will save power and GPRS. When car don’t mover,the device will got to sleeping automatically. When sleep the consumption is only 1-3mAh can save power 80%. When t car move, the device will be wake up to tracking the car, and send the data to cell phone or monitor center.

• SD card and over the air update

Importand with SD card:

1: When no GSM and GPS signal all the data will be saved at SD card and will be send again after get gsm gps signal.

2: Many function and updating will be add in the future like over the air update: user can send a update message to the unit, updating will be finished within 3-5 minutes and SD card is the necessary in this.

• Sleeping model

When device don’t receive any task ,it will go to sleep ,When sleep the consumption is only 1-3mAh. If the device receive the SMS and calling during sleeping, it will wake up and go to work automatically.

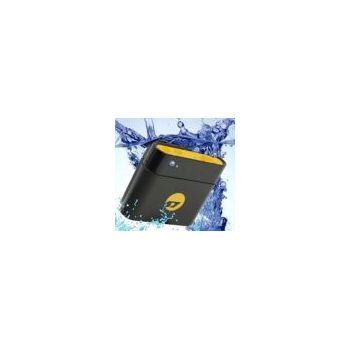

High waterproof PX 8

The unit configurate the powerful magnets, belt buckle that can be removed. Powerful magnets has quite strong adsorption force can be adsorption on vehicles,after installation buckle,It can be used for persons and pet

• Synchronization client Tracker PC

User can setting /updating the tracker through PC (connect the computer with the USB cable).This function avoid the SMS fee and make it more easy operate than send SMS.

Scan or copy data of SD card in Tracker Pc (OEM)

• Black box

All track history will be saved in SD card and will be keeped 3-5 months.

1) Size: 68mm x 50mm x 20mm
2) Package size: 212mm x 129mm x 59mm
3) Net weight: 85g / Gross weight: 550g
4) Converted into Call ID positioning in blind area
5) Real time tracking, SOS, voice monitor, mileage calculation
6) View Google map on mobile screen
7) Movement alert .Over speed alert .shake senser, Geofence
8) Traffic mode
9) Support: 2GB SD Card
10) Sleeping mode
11) Waterproof

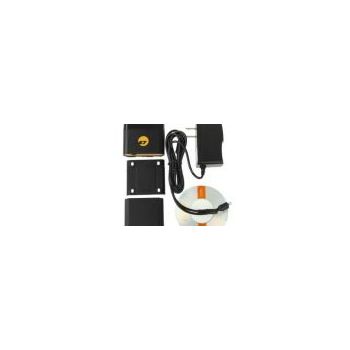

12) Powerful dismountable magnet cover +dismountable Belt gusset plate.

Product parameter:
1) Network: GSM/GPRS
2) GSM/GPRS module: SIMCOM SIM900
3) Band: 850/900/1800/1900Mhz
4) Communication protocol: TCP
5) CPU: ARM7
6) GPS chip: SIRF3 chip
7) GPS sensitivity: -159dBm
8) GPS accuracy: 5m
9) Time To First Fix: Cold status: 45s, Hot status: 1s
10) Car charger: 12—24V, input: 5V
11) Wall charger: 110-220V, input: 5V
12) Battery: 3.7V 860mAh Li-ion battery
13) Standby: 250hours
14) Storage Temp: -40°C to +85°C
15) Operation Temp: -20°C to +55°C
